Seals for vehicle construction
Seals are subject to particular stresses in vehicle construction. Not only do they have to provide reliable protection against water, dirt, and dust, they also have to compensate for vibrations, withstand temperature fluctuations, and remain dimensionally stable for years. Whether in transport vehicles, containers, commercial vehicles, or special superstructures, the right profiles ensure safety, comfort, and durability.
Seals for vehicle construction
Our seals for vehicle construction are designed to function reliably even under harsh conditions. They protect against corrosion, prevent energy loss, and contribute to quieter, more comfortable use.
Materials in the field of vehicle construction
- PVC: A proven material that is cost-effective, stable, and weather-resistant. Particularly suitable for applications with consistent requirements.
- TPE (standard 60 ShA): High elasticity, good resilience, and resistance to UV radiation and temperature fluctuations. Ideal for a wide range of applications in vehicle construction.
- Silicone (60 ShA, talc-coated or non-talc-coated): For extreme temperature ranges and long-lasting applications. Silicone remains permanently elastic, even in extreme heat or cold.
Talc-coated means that the surface has been treated with fine talcum powder. This reduces surface adhesion, facilitates assembly, and prevents the profiles from sticking together during installation.
Design features and models

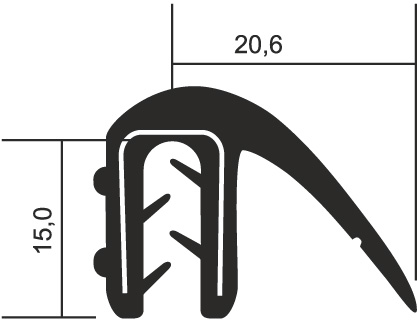

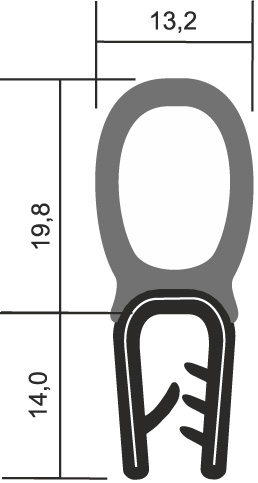

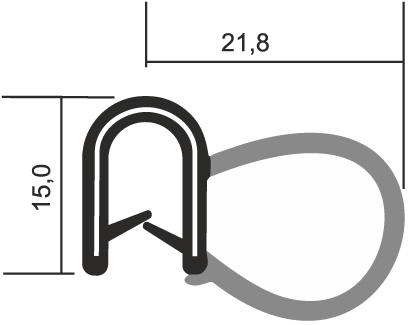

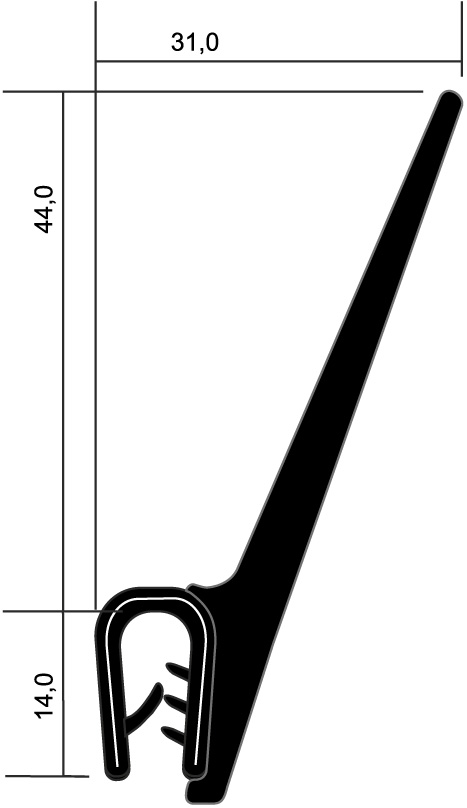

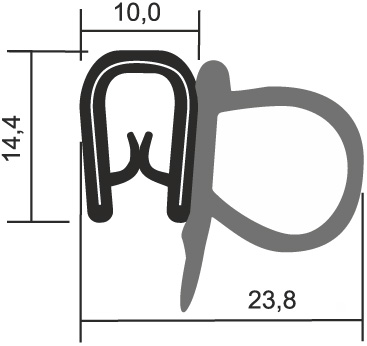

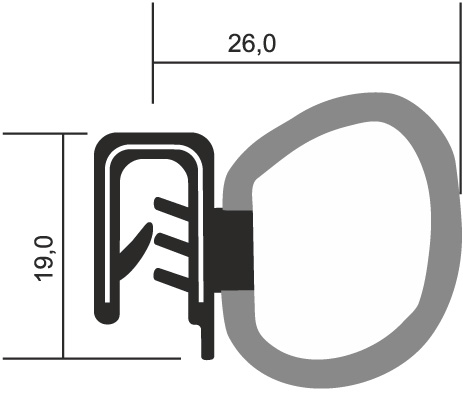

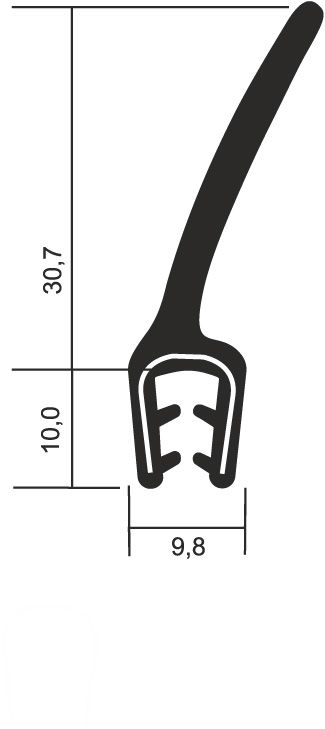

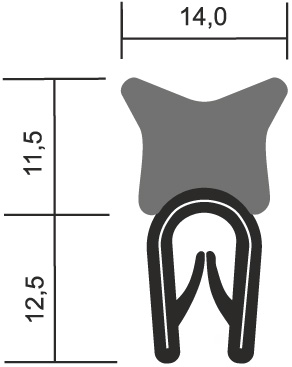

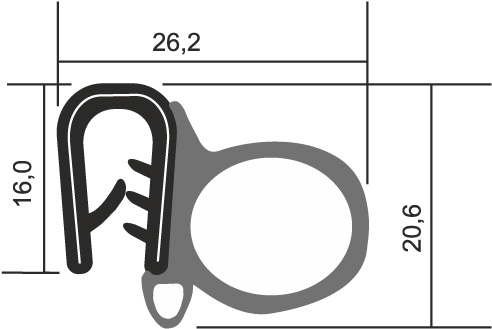

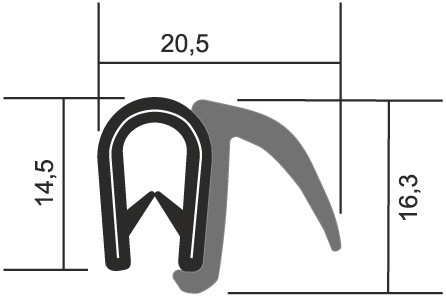

Many of our vehicle construction profiles are equipped with a metal core, which ensures a secure hold and high stability – even with frequent installation and removal or strong vibrations. In addition, variants with pull-out bars are available, which facilitate installation and ensure a particularly secure connection.
The profiles cover various clamping ranges – depending on requirements, from 1–2 mm to 2–4 mm and 2.5–4 mm to flexible spans such as 1–4 mm or 1–3.5 mm. This allows a wide variety of material thicknesses to be reliably fixed in place.
A particular advantage in the vehicle construction range: many of our seals are coordinated with each other. For example, there are matching filler profiles for clamping profiles, which are linked directly in the item description. There you will find, for example, the note “Matching filler profile: ADTP-XXXX”. This means you can be sure that the clamping and filler profiles fit together perfectly and form a functional overall solution.
We offer our vehicle construction seals in the following colors:
- Standard colors: White, black
- Special color: Window gray
- Custom colors: available in other RAL colors for orders of 200 m or more
Product range

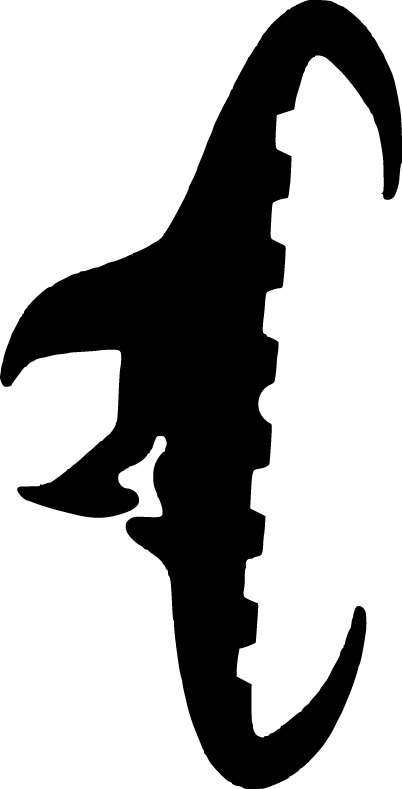

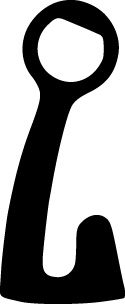

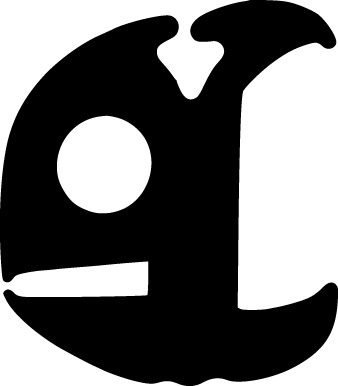

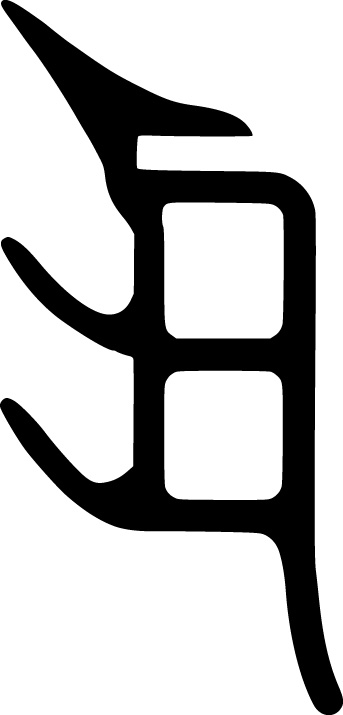

- Clamping and filling profiles: Form a coordinated unit when used together. The clamping profile attaches securely to the component, while the filling profile completes the seal.
- Container and trough seals: Specially designed for commercial vehicles and transport containers, robust and resistant to dirt, water, and mechanical stress.
- Edge protection seals: Protect sensitive edges from damage while ensuring a clean seal.
- Special seals: Custom-made profiles for special vehicle designs or specific areas of application.
Installation & maintenance
Seals are usually installed in vehicle construction by simply attaching them to the respective edge. Profiles with a metal core ensure a secure hold even under vibration or high loads. Regular inspection and cleaning extend the service life and ensure a lasting seal.
GfA – expertise in sealing technology
With over 5,312 profile variants, GfA also offers the right solution for vehicle construction – from standard profiles to individually developed special seals. Quality Made in Germany, modern production and a wide variety of materials make us a reliable partner for industry and trade.
Advantages at a glance:
- Wide range of materials: PVC, TPE, silicone
- Standard colors black & white, special color window gray, custom colors from 200 m
- With metal core and tear-out bar for secure installation
- Various clamping ranges from 1 to 4 mm
- Matching filler profiles linked directly in the item description
- More than 5,312 profile variants available
